Turbo Assembly
Turbine Holding Fixture

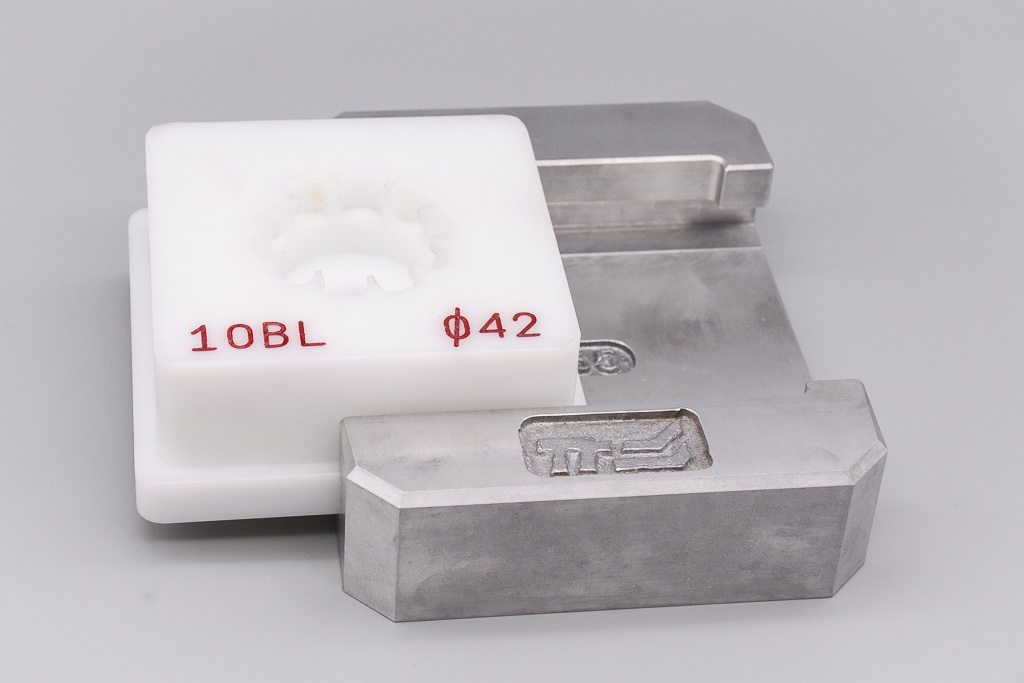

TT offers a range of universal turbine holding blocks with a quick-change baseplate. Blade counts from 9-12 and a range of tip diameters from 35mm to 109mm can be accommodated. Made from hard-wearing plastic, the blocks hold the wheel securely during assembly yet will not damage the delicate blades. The blocks can be secured in a bench mounted fixture and changed in a few seconds to make the range truly universal.
Standard Ranges
Holding block sets
Two sets are available covering car and commercial ranges, and the universal mounting fixture (which fits all sizes) is available separately. Individual blocks may also be purchased separately.
Car Range
| Blade Count | Tip Diameter (mm) | ||||
|---|---|---|---|---|---|
| 9 | 35 | 40 | 46 | 53 | |
| 10 | 42 | 48 | 55 | 63 | 73 |
| 11 | 55 | 63 | 72 | 83 | |
| 12 | 55 | 63 | 72 | 83 | |
Commercial Range
| Blade Count | Tip Diameter (mm) | ||||
|---|---|---|---|---|---|
| 10 | 63 | 73 | |||
| 11 | 63 | 72 | 83 | 95 | 102 |
| 12 | 63 | 72 | 83 | 95 | 102 |
