Turbo Technics

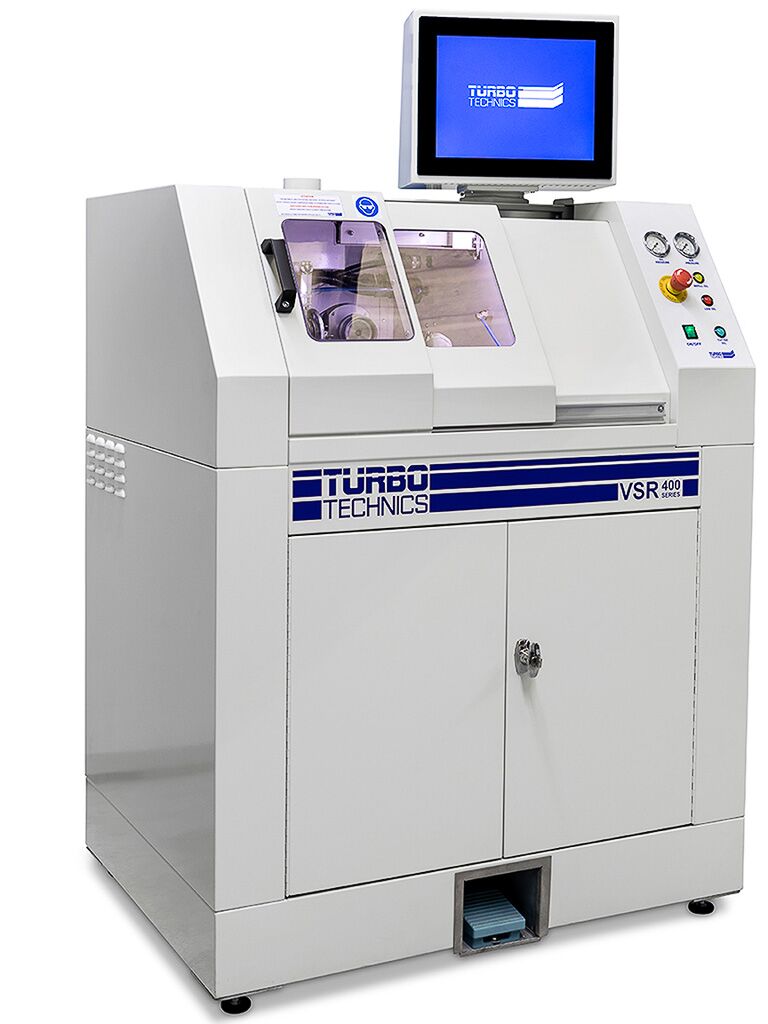

VSR 400
The VSR 400 series is a Vibration Sorting Rig (VSR™) designed for the higher volume after-market and lower volume OEM customer and is available with a number of features that suit volume turbo production. The VSR 400 is suitable for passenger car and light/medium commercial vehicle turbocharger cores (CHRA).
Following the success of the VSR MK3 in 1999, customers demanded a machine capable of continuous operation. Turbo Technics answered this demand with the introduction of the VSR 400 range in 2004.
Optional
Accessories
TURBINE HOUSING ADAPTERS
A large range of quick-change CHRA-specific housing adapters are available, including standard and reverse rotation types.
ACCESSORIES
Turbo Technics offer a comprehensive range of accessories and adapters for all test machines. Additional optional components allow machines to be tailored to customer specification.
Latest Technology
UK Design & Build
As with all TT machines, the VSR 400 series uses the latest touch-screen technology, an intuitive interface and in-built connectivity which allows remote technical support from TT via the internet. The easy to use software can be quickly mastered in a few hours with additional free training available at TT UK HQ if required.
All Turbo Technics machines are designed and built in the UK and available through the TT distributor network.
Compare models
VSR 400 SERIES
The VSR 400 series has evolved to incorporate a further 3 machines with increasing levels of automation.
| Machine Type | VSR 400 | VSR 410 | VSR 420 | VSR 430 |
|---|---|---|---|---|
| Reverse Rotation | ✔ | ✔ | ✔ | ✔ |
| Automatic Door Opening | ✔ | ✔ | ✔ | |
| Automatic Rotor Clamp | ✔ | ✔ | ✔ | |
| Second Cutter for 2-Plane Balancing | ✔ | ✔ | ✔ | |
| Automatic Speed / Cycle Control | ✔ | ✔ | ||
| Oil Mist Extraction | ✔ | ✔ | ||
| Automatic Length Set | ✔ | |||
| Integrated Cutter | ✔ |
VSR 400 benefits &
Key Features
- Economically priced machine for the higher volume after-market and lower volume OE manufacturer
- Versatile machine for all car and light commercial cores
- Fastest balancing speed – up to 300,000 rpm matching actual operating speeds
- Wide range of turbine housing adapters, standard and reverse rotation
- 3 stage oil filtration with temperature control
- Automatic oil purge
- Standard single phase electrical connection
- Excellent air efficiency
- Robust steel cabinet
- Small footprint
- Touch-screen computer operation
- Intuitive operation – free training at UK headquarters
- User configurable software and templates
- Quick model change over
- Automation options
- Two plane balance correction option
- Reverse rotation software included
- User interface language options
- VSR™ vibration measurement in gpk
- Balance tests can be printed and saved
- Built in calibration
- Remote technical support and software updates via internet
- Used by Turbo Technics and major OEMs
- Fully tested and calibrated prior to delivery
- Safety interlocked, PAT tested, CE certificated
- UK manufacture
- 24 month warranty
The VSR 400 series is designed for high versatility and quick model change. The compact footprint, speed of operation and simplicity of integration make it perfect for all workshops.
VSR 400 benefits &
Key Features
- Economically priced machine for the higher volume after-market and lower volume OE manufacturer
- Versatile machine for all car and light commercial cores
- Fastest balancing speed – up to 300,000 rpm matching actual operating speeds
- Wide range of turbine housing adapters, standard and reverse rotation
- 3 stage oil filtration with temperature control
- Automatic oil purge
- Standard single phase electrical connection
- Excellent air efficiency
- Robust steel cabinet
- Small footprint
- Touch-screen computer operation
- Intuitive operation – free training at UK headquarters
- User configurable software and templates
- Quick model change over
- Automation options
- Two plane balance correction option
- Reverse rotation software included
- User interface language options
- VSR™ vibration measurement in gpk
- Balance tests can be printed and saved
- Built in calibration
- Remote technical support and software updates via internet
- Used by Turbo Technics and major OEMs
- Fully tested and calibrated prior to delivery
- Safety interlocked, PAT tested, CE certificated
- UK manufacture
- 24 month warranty
The VSR 400 series is designed for high versatility and quick model change. The compact footprint, speed of operation and simplicity of integration make it perfect for all workshops.
VSR 400
Technical Specification
| Balancing Speed | Ranges up to 300,000 rev/min |
| Impeller Tip Speed | Up to 550 m/s |
| Maximum Turbine Wheel Diameter | 85 mm approximately |
| Maximum Rotor Length | 180 mm approximately |
